SPOOL PERFORMANCE BILLET MANIFOLD S58 TOP MOUNT TURBOCHARGER KIT

from $6,999.00

TURBO SELECTION:
COATINGS:
Quantity:
Add To Cart

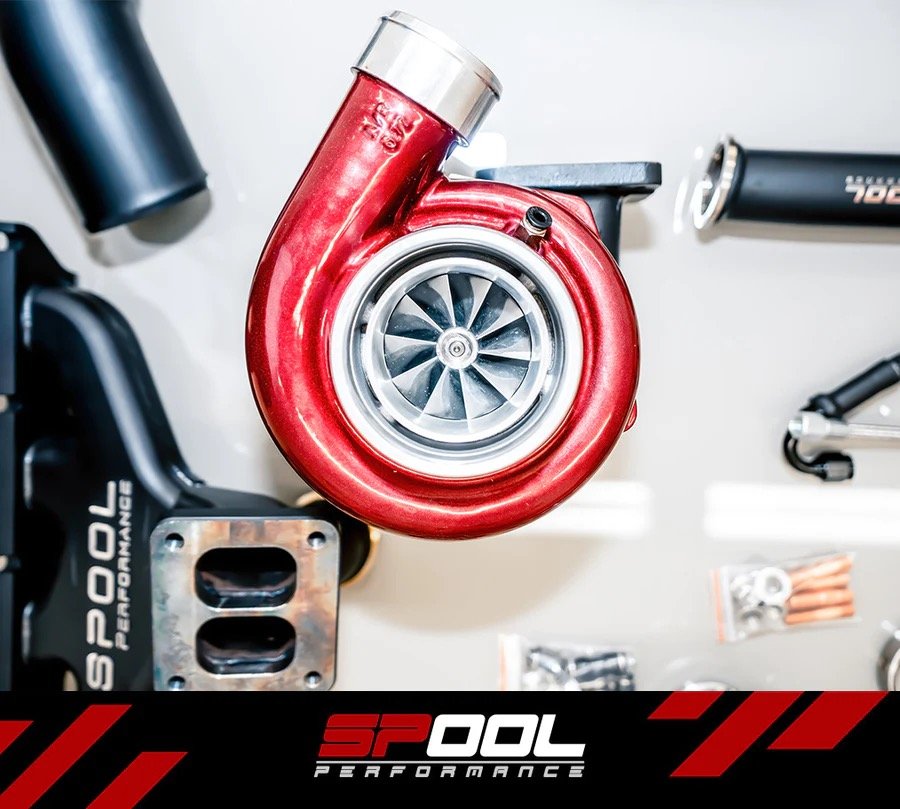

Turbochargers:

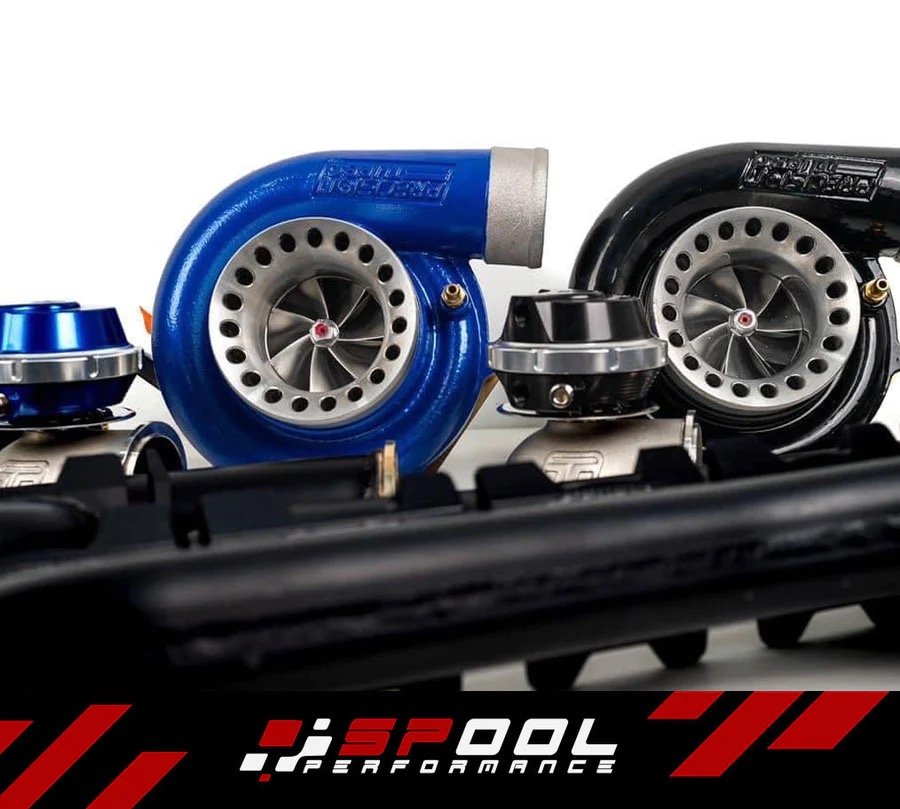

The Kit is offered in a variety of PTE air-cooled and Spool IFX water-cooled ceramic ball-bearing turbos as follows:

PTE 6466 Gen2 Ball Bearing Air Cooled                           -900HP               - 1 year warranty

PTE 6870 Gen2 Ball Bearing Air Cooled                           -1100HP             - 1 year warranty

PTE 7275 Gen2 Ball Bearing Air Cooled                           -1200HP             - 1 year warranty

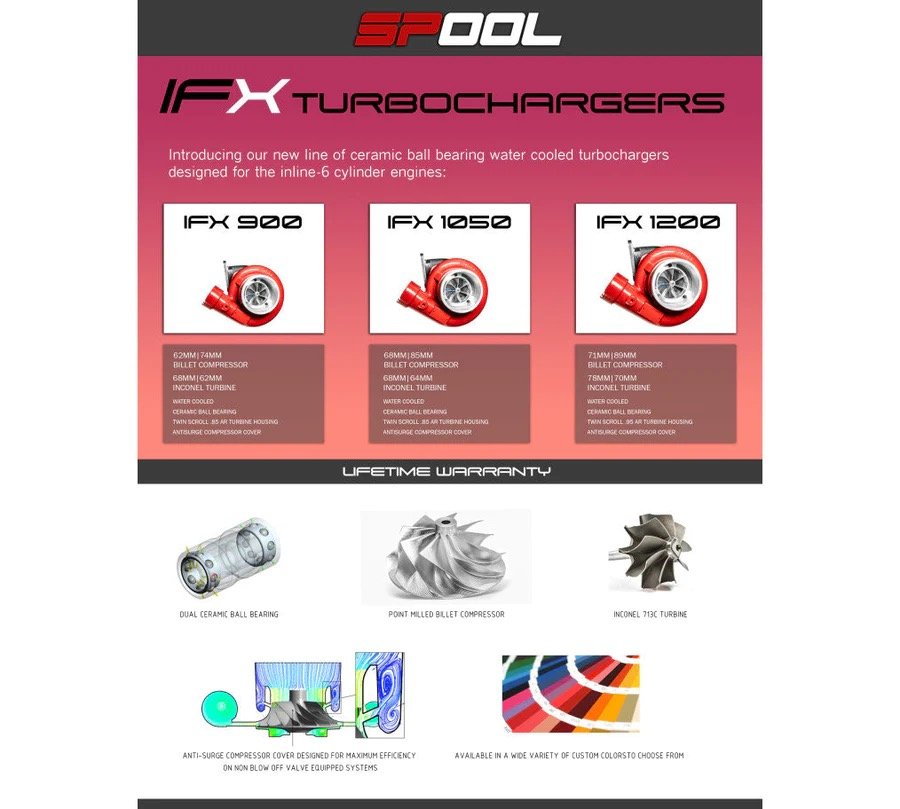

SPOOL IFX-1050 Ball Bearing Water Cooled         - 1050HP             - Lifetime warranty

SPOOL IFX-1200 Ball Bearing Water Cooled         - 1200HP             - Lifetime warranty

** SPOOL IFX-1400 Ball Bearing Water Cooled      - 1400HP             - Lifetime warranty

**available on special request. IFX-1400 utilizes a different riser on the manifold accounting for a bigger wastegate and positioning correction for the bigger frame.



Accessories:

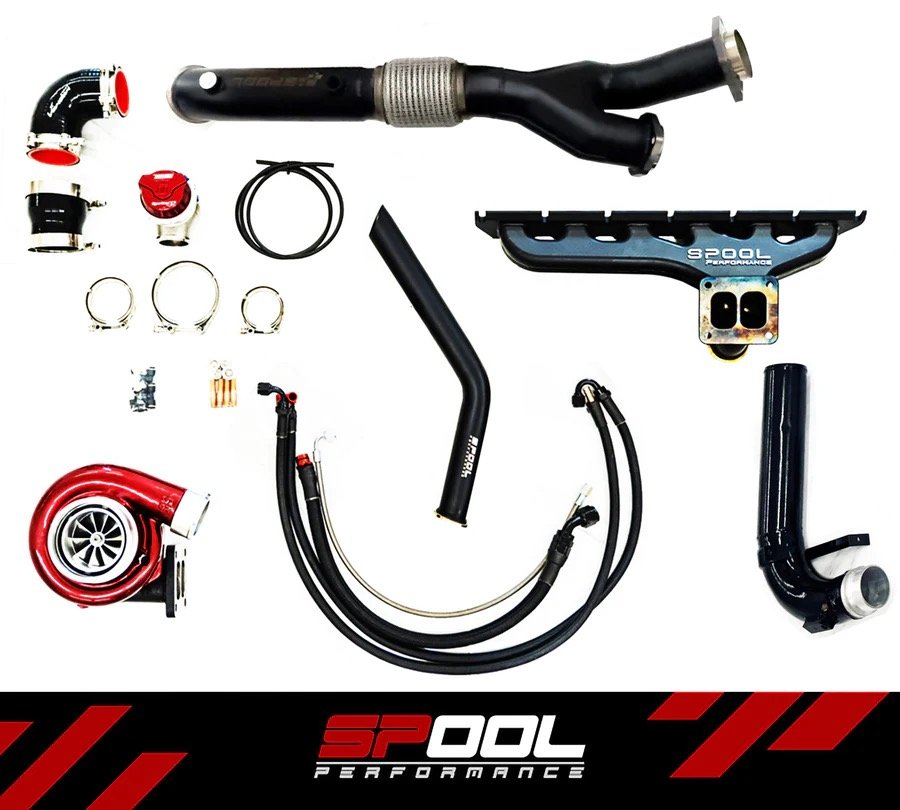

Our kit is designed to be a true plug-and-play solution. Included with the kit are AN fittings for oil feed and drain, water feed and drain (Spool IFX Turbos), and a water bypass (Precision Turbos and others). We are also offering an optional catch-can solution that is a true plug-and-play solution. A corrosion-resistant 304 stainless steel mandrel bent downpipe and dump tube are also included. We are also offering the turbo compressor cover in a color of your choice (default red) and cerakote thermal coating for the hot parts. The following is a list of included and optional parts:

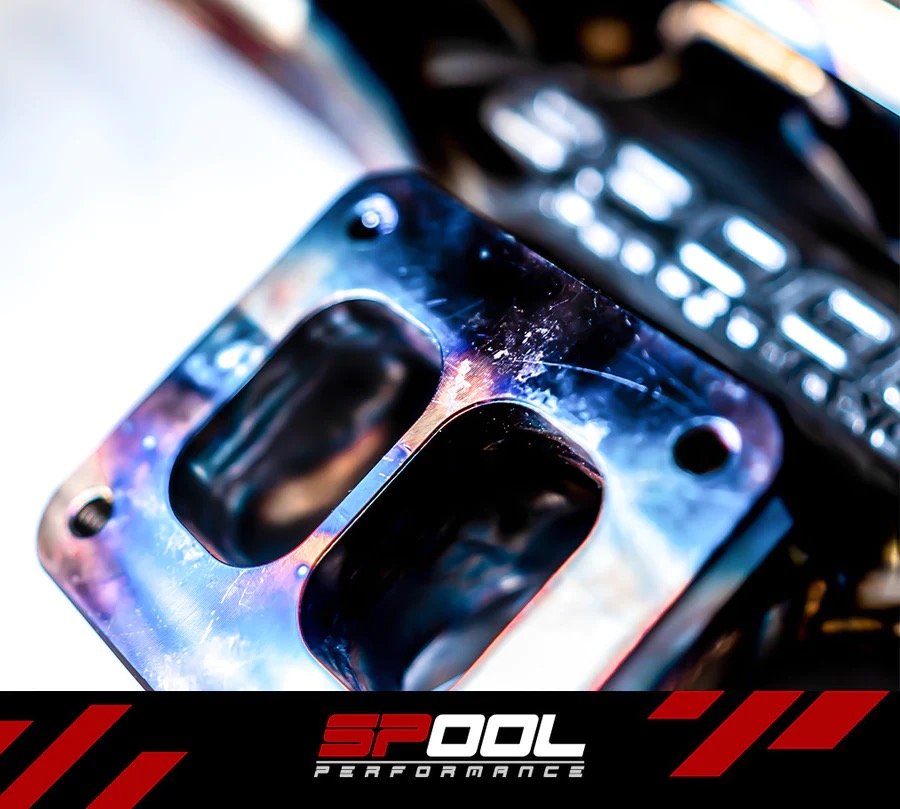

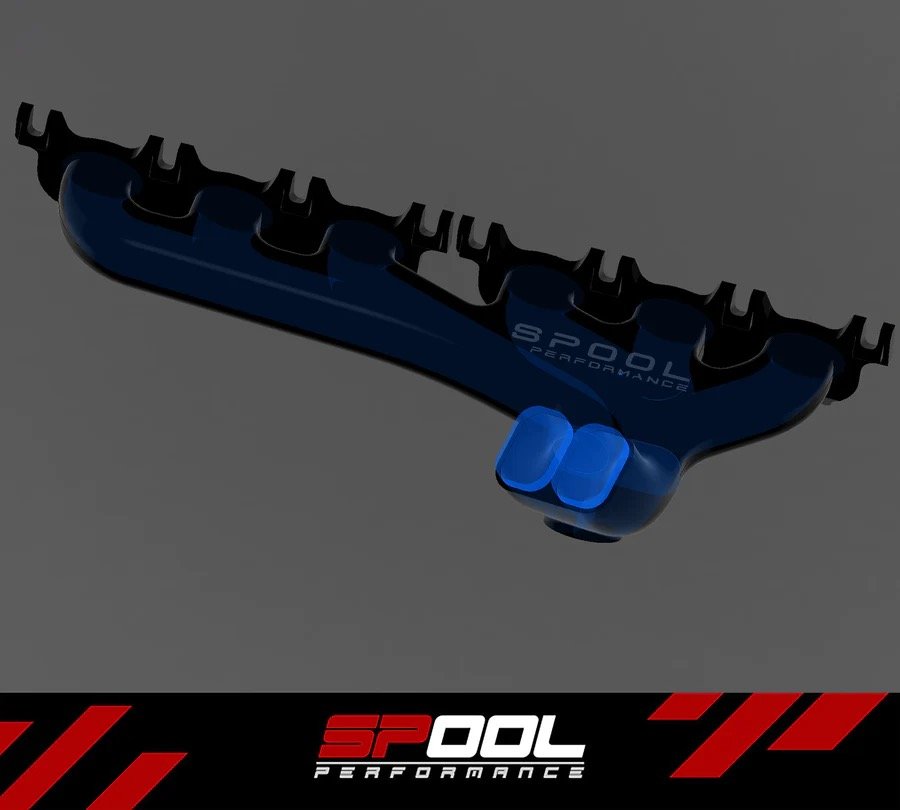

  • Billet Exhaust Manifold

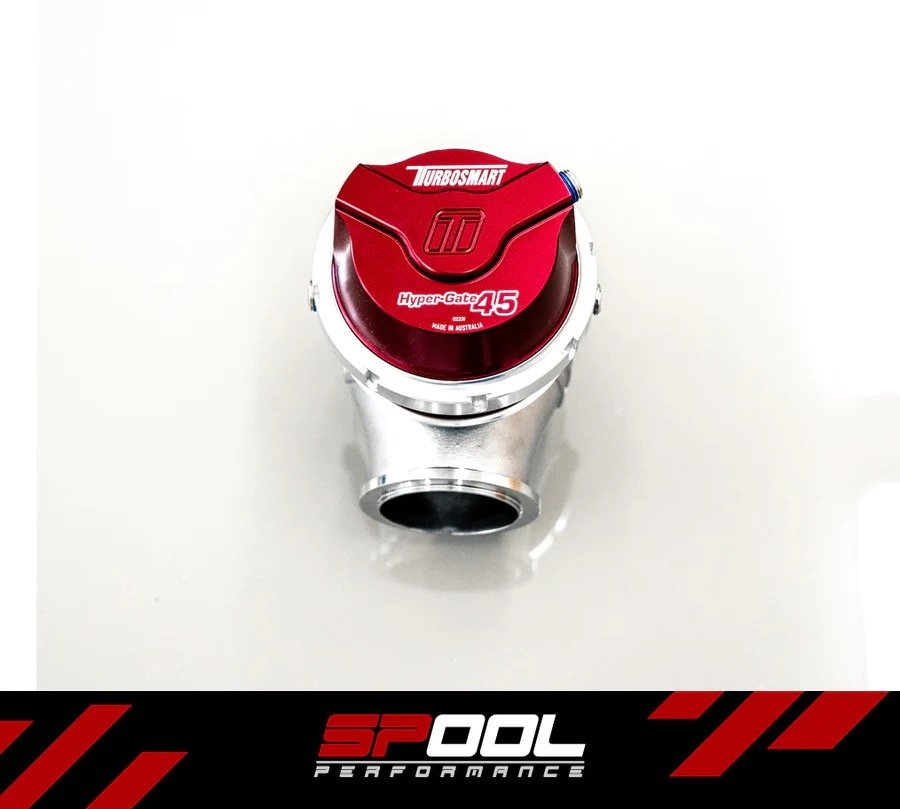

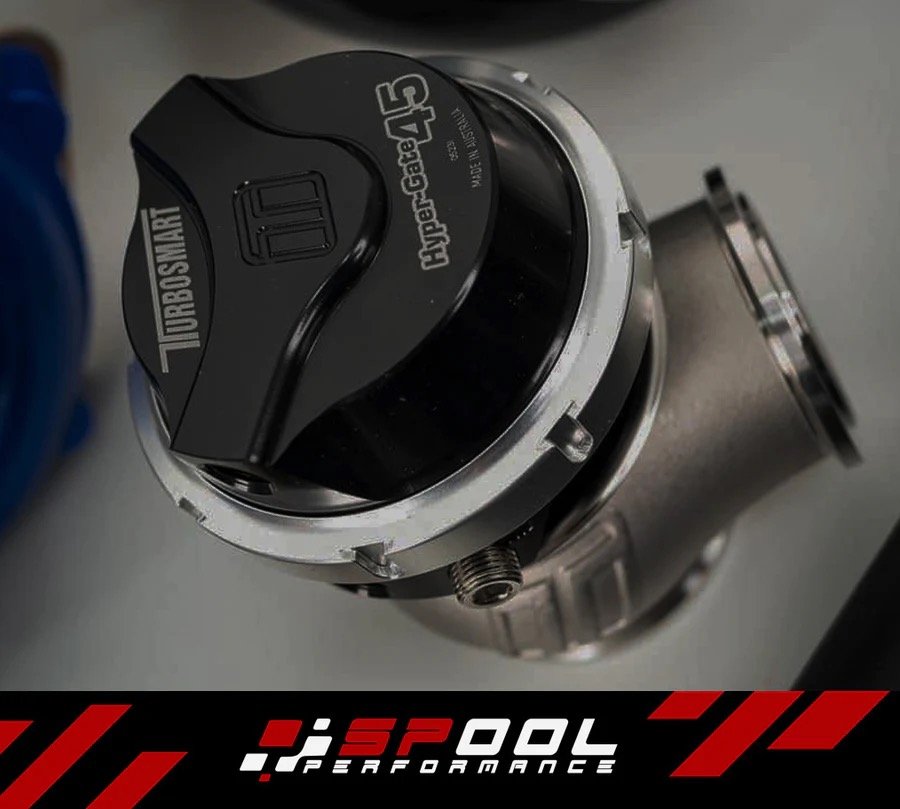

  • 45mm Turbosmart wastegate with springs

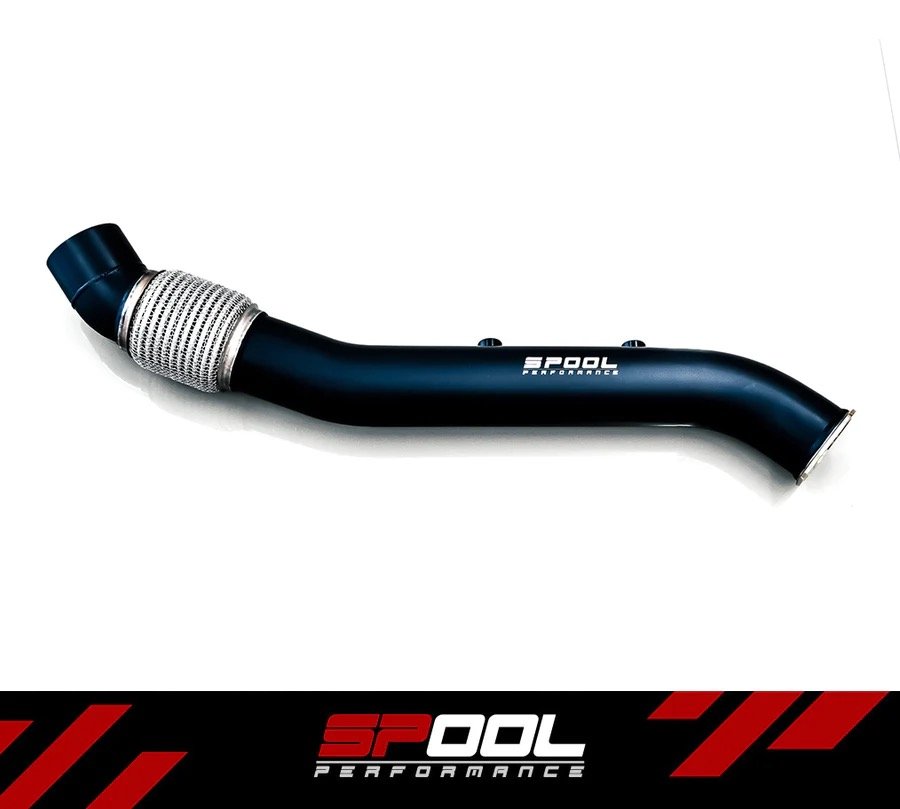

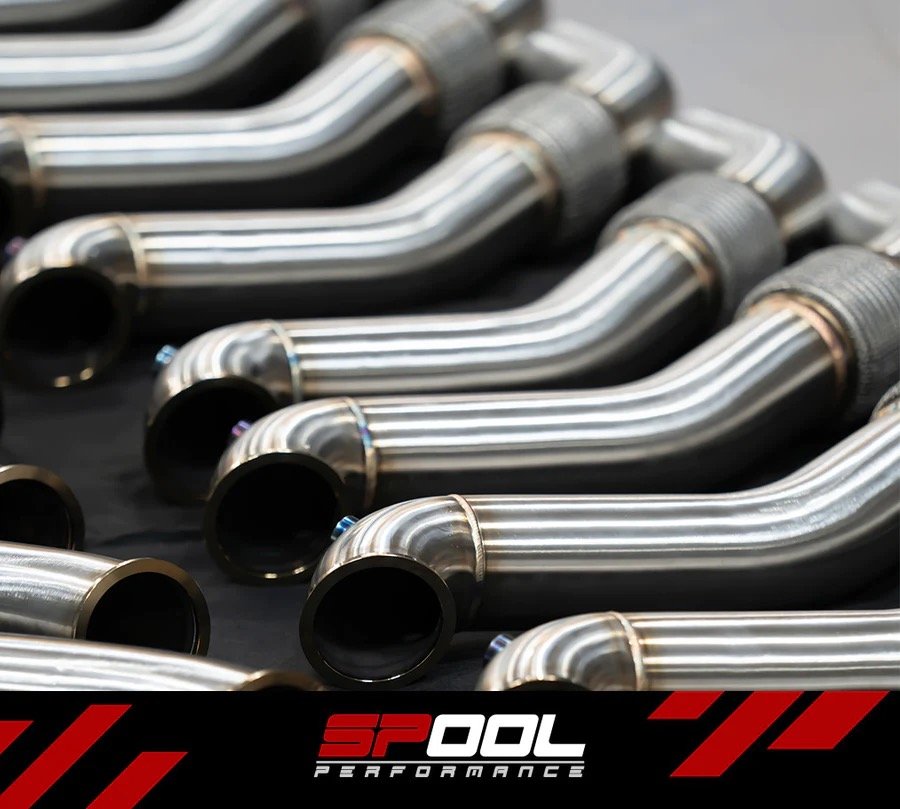

  • 304 Stainless steel Mandrel bent downpipe and clamps

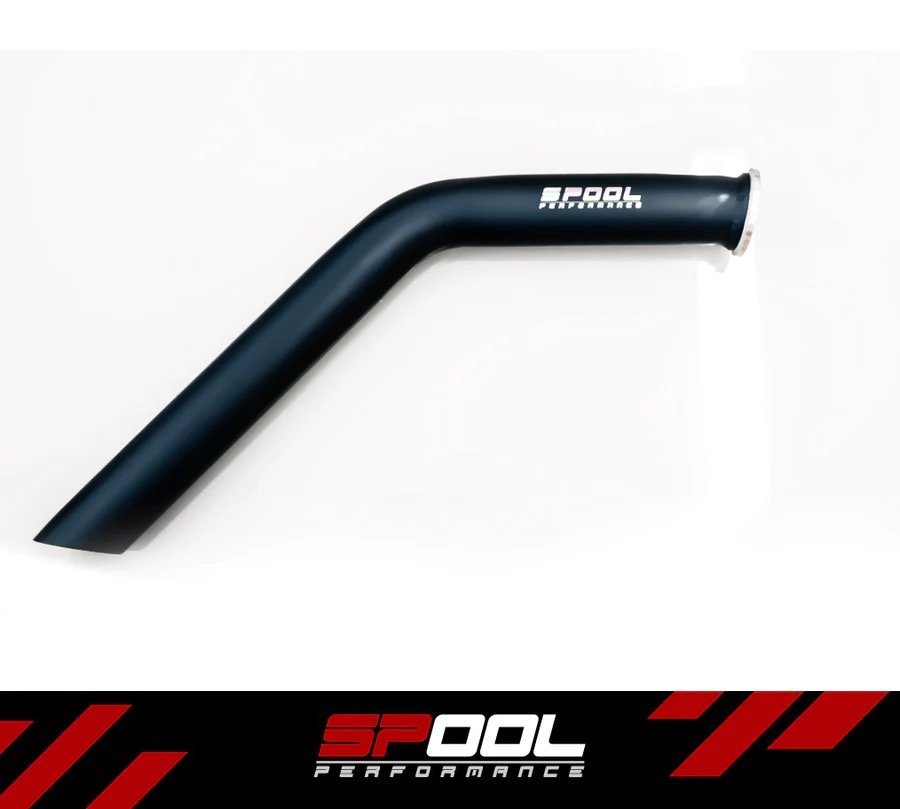

  • 304 Stainless steel Mandrel bent wastegate dump and clamps

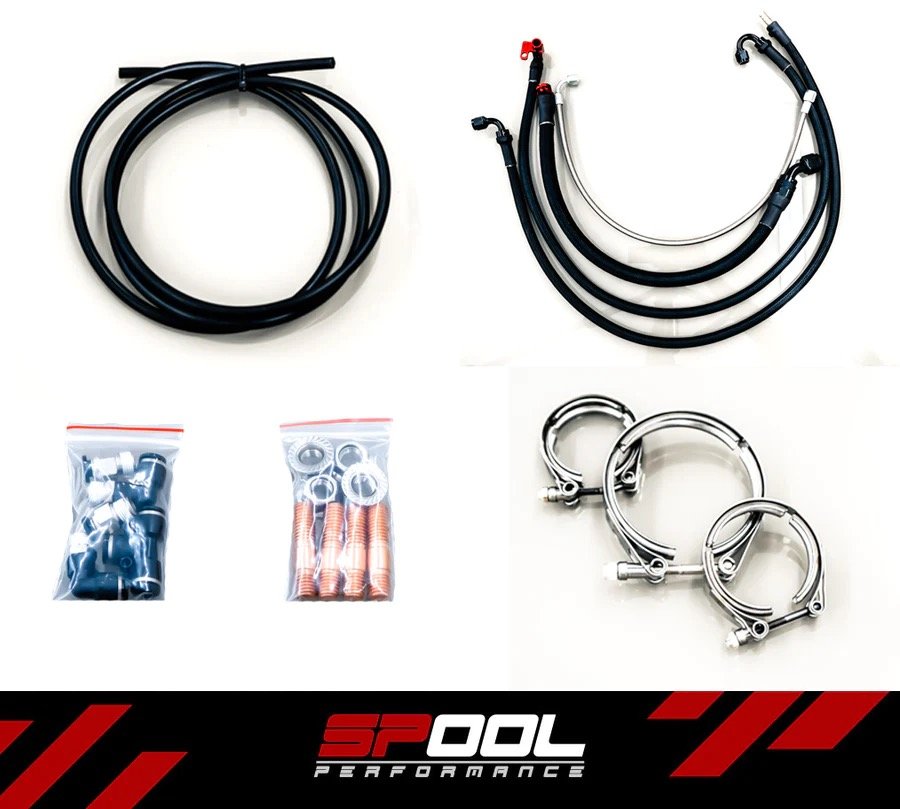

  • Plug and Play Water Feed and Drain / Bypass

  • Plug and Play Oil Feed and Drain

  • T4 manifold studs and bolts

  • Silicone couplers

  • Lines and fittings for boost control [Solenoid not included]

  • Coolant Relocation Bracket

  • Charge pipe for stock charge pipe replacement

  • High Side catch can

  • Low Side PCV cap with intake port block-off

Optional:

  • Cerakote thermal coating for hot parts

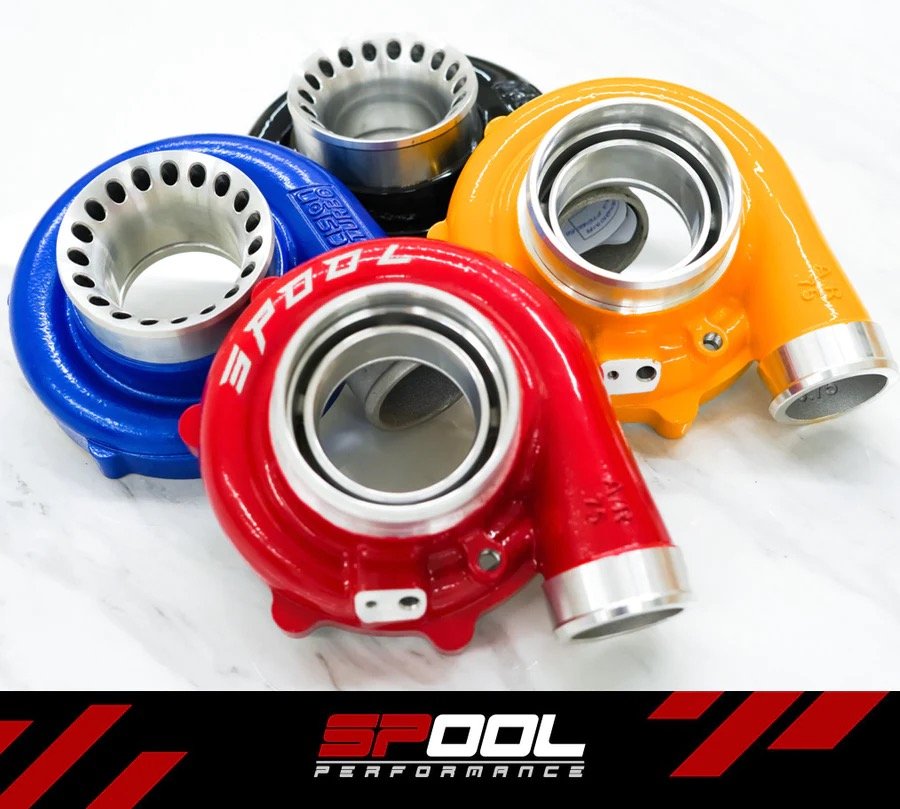

  • Custom color choice for compressor cover

  • Upper charge pipe for stock charge pipe replacement

  • High Side catch can

  • Low Side PCV cap with intake port block-off
